Yongda Cement Bulk Carrier Trailer For Bulk Cement Cargoes
Yongda cement bulk carrier truck is a state-of-the-art vehicle designed to transport and store bulk cement and other powdery materials efficiently. Our trucks feature expansive, enclosed storage areas equipped with specialized technologies for seamless loading and unloading of heavy powders, ensuring your cargo remains secure throughout transit.
Our trucks are meticulously crafted to enhance transport efficiency while reducing operational costs and environmental impact. Our innovative design supports the mechanization of loading, transporting, discharging, and storage processes, resulting in a streamlined workflow.
Three Models of Cement Transport Trucks We Offer:
Aluminum Alloy Powder Tank Semi-trailer

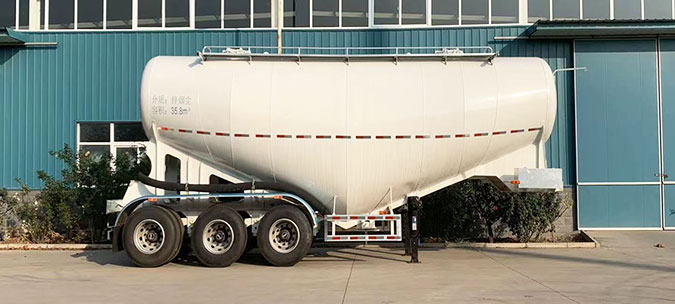

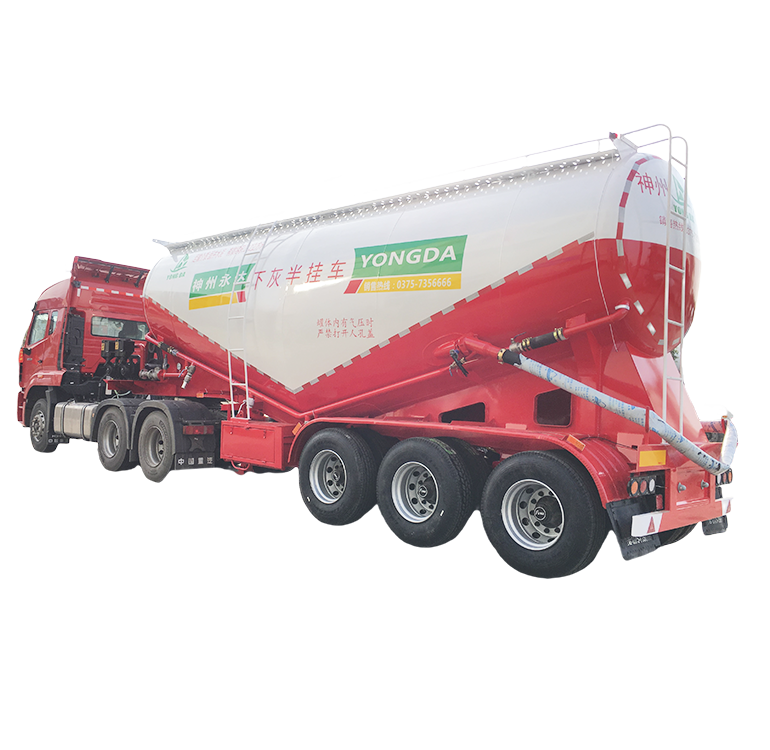

Carbon Steel Powder Tank Semi-trailer

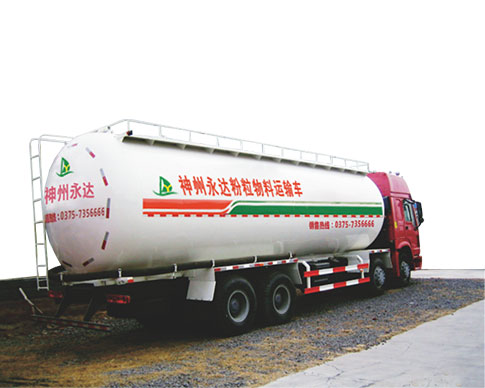

Bulk Cement Tanker Truck
Yongda Bulk Cement Trucks For Sale
Our structural components undergo advanced shot blast pre-treatment, while tank parts are expertly welded using specialized equipment and Panasonic automatic welders, ensuring durability and reliability.
We utilize high-quality bus baking varnish for coating and painting, with topcoats that last significantly longer—about two to three times longer than those from other manufacturers. Our cement bulk carrier trucks are built on robust heavy-duty chassis, integrating both national standards and leading imported chassis, and offer an extensive range of over 60 vehicle models to meet diverse industry needs. Choose Yongda for unparalleled performance and efficiency in cement transportation.

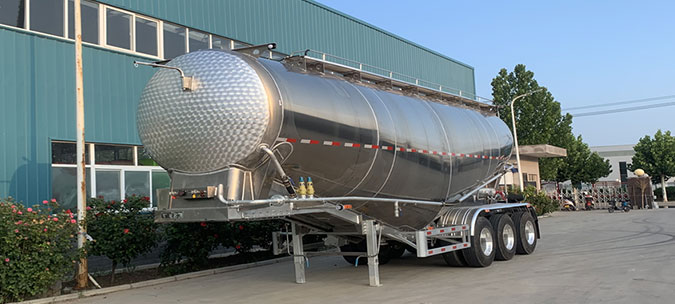

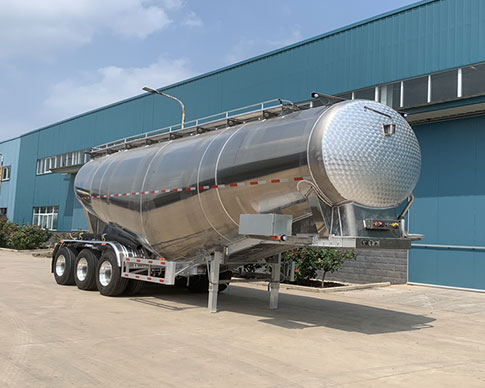

Aluminum Alloy Powder Tank Semi-Trailer For Sale
The aluminum alloy powder tank semi-trailer is designed with an emphasis on rationality and optimization of structural components. The tank body is constructed from high-strength aluminum alloy plates, which meet the operational requirements of powder tankers.
The chassis is made from a single piece of extruded aluminum profile, ensuring enhanced strength to accommodate various road conditions.
The entire vehicle features aluminum alloy fittings, providing excellent strength while maintaining a lightweight design.
Advantages of Aluminum Alloy Powder Tank Semi-Trailer
Lightweight Design: The vehicle utilizes specially customized pressure-resistant aluminum alloy sheets and features aluminum alloy fittings throughout to achieve a lightweight design. The main beam is constructed from 6-series aluminum alloy extrusions, providing superior strength and enhanced load capacity to meet the demands of complex road conditions.
Rational Design: The tank body features a short V-shaped design with a wide angle, which enables faster unloading speeds and reduces residue left in the tank.
Usages of Aluminum Alloy Powder Tank Semi-Trailer
Aluminum alloy cement trucks are increasingly favoured in the construction and building materials industries for their lightweight yet durable construction. One of the primary usages of these trucks is the transportation of ready-mix concrete. The lower weight of aluminum compared to traditional steel allows for increased payload capacities, enabling more efficient delivery of materials while reducing fuel consumption and costs.
In addition to transporting cement, aluminum alloy trucks are also used for hauling other granular materials and fine powdered substances, such as aggregates and additives, which are essential in concrete production. Their excellent resistance to corrosion makes them particularly advantageous for use in environments where moisture and chemical exposure are common, prolonging the lifespan of the vehicle and minimizing maintenance requirements.
The design flexibility of aluminum allows manufacturers to produce specialized bodies that accommodate different loading and unloading systems, such as pneumatic discharge systems for powder materials. Furthermore, the sleek profile of aluminum trucks often results in improved aerodynamics, enhancing fuel efficiency during transportation.
Overall, aluminum alloy cement trucks provide a robust solution for the efficient and effective delivery of construction materials, contributing significantly to operational efficiency and sustainability in the industry.
Specification of Aluminum Alloy Powder Tank Semi-Trailer
| Model | YYJ9400GFL01 | YYJ9400GFL02 | YYJ9400GFL03 |
| Dimensions（mm） | 9520*2500*4000 | 12925*2550*4000 | 9520*2500*4000 |
| 9300*2550*4000 | 9300*2550*4000 | ||
| 8823*2550*4000 | 8823*2550*4000 | ||
| Wheel base（mm） | 5300、5200、4820 | 7990+1310+1310 | 5300、5200、4820 |
| Curb weight（kg） | 5000、4900、4800 | 6800 | 5100、4700 |
| Tank volume（m³） | 45、42、40 | 60 | 38.5 |
| Rated pressure（MPa） | 0.2 | 0.2 | 0.2 |
| Horizontal conveying distance（m） | ≥5 | ≥5 | ≥5 |
| Vertical conveying height（m） | ≥15 | ≥15 | ≥15 |
| Discharge speed（t/min） | ≥1.2 | ≥1.2 | ≥1.2 |
| Residual rate（%） | ≤0.3 | ≤0.3 | ≤0.3 |

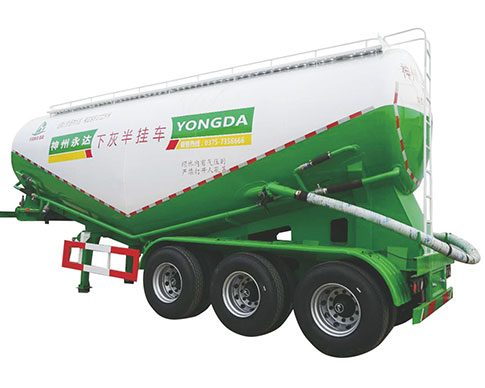

Carbon Steel Powder Tank Semi-Trailer For Sale
The carbon steel bulk material transport semi-trailer is designed with rationality in mind, optimizing the structure of each component for enhanced performance. The entire chassis is constructed from high-strength steel, ensuring reliability and stability through automated welding processes. Its V-shaped design with a wide angle allows for faster unloading while providing more efficient weight distribution.
The internal structure features a smooth, non-frictional material design that effectively prevents the risk of internal cracking, resulting in quick discharge speeds and minimal residue left behind. This design adaptability makes the semi-trailer suitable for a wide range of powdered materials, offering versatility in various industrial applications. Overall, this trailer combines advanced engineering with practical functionality, making it an excellent choice for efficient bulk material transportation.
Advantages of Carbon Steel Powder Tank Semi-Trailer
Lightweight Design: The bulk material transport semi-trailer is constructed using excellent low-alloy high-strength steel plates, featuring multiple optimization designs throughout its body. Lightweight materials are chosen wherever possible, and the tank employs an industry-leading structure that eliminates the need for flow dividers, resulting in a reduced overall weight while ensuring no dead zones or residue.
Cost-Effectiveness: The optimized design of the entire structure enhances the strength of high-stress components, ensuring reliable performance and longevity. Meanwhile, the weight of less-stressed parts is minimized by eliminating unnecessary configurations, leading to an overall lighter vehicle.
Through detailed practical analysis and design refinement, the vent port size of the closure air chamber has been meticulously calculated, and the position of the fluidized bed is strategically arranged. This guarantees optimal material fluidization, increases unloading speed, and significantly reduces material residue, ensuring that the trailer operates efficiently and effectively in various transportation scenarios.
Usages of Carbon Steel Powder Tank Semi-Trailer
Carbon steel powder tank semi-trailers are widely utilized in various industries for transporting bulk powdered materials. Their robust construction and durability make them ideal for carrying a range of products, including cement, lime, flour, and other fine powders. These trailers are especially important in the construction and building materials sector, where large quantities of cement need to be transported to job sites efficiently.
The strength of carbon steel allows these trailers to handle high-pressure situations and carry heavier loads than many aluminum variants, optimizing payload capacities. This results in fewer trips required to deliver the same material, enhancing operational efficiency and reducing transportation costs.
Additionally, the weldability of carbon steel facilitates easy repairs and modifications, ensuring that maintenance can be performed quickly and cost-effectively. These trailers are also suitable for a variety of environments, including those with harsh weather conditions, thanks to their heat resistance and ability to endure physical stress.
Beyond construction, carbon steel powder tank semi-trailers can serve industries such as food processing, pharmaceuticals, and chemical manufacturing, where powdered raw materials are common. This versatility, combined with their ruggedness and cost-effectiveness, makes them a vital component in many supply chain operations.
Specification Of Carbon Steel Powder Tank Semi-Trailer
| Model | YYJ9401GFL | YYJ9402GFL | YYJ9403GFL | YYJ9404GFL | YYJ9405GFL |
| Dimension（mm） | 12000、11400、11350、10700*2550*4000 | 9750、9350、9100、8700*2550*4000 | 9750、9350、9100、8700*2550*4000 | 9500、 | 10250、 |
| 9300、 | 9850、96009200*2550*4000 | ||||
| 8800、 | |||||
| 8650*2550*4000 | |||||
| Wheel base（mm） | 6900+1310+13106600+1310+1310 | 5000+1310+13104600+1310+1310 | 5000+1310+13104600+1310+1310 | 4700+1310+1310 4550+1310+1310 | 5300+1310+1310 5100+1310+1310 |
| Curb weight（kg） | 9200、8600 | 6650、6500、6050 | 6400、5850 | 6700、6400、6100 | 7250、6900、6600 |
| （kg） | |||||
| Tank volume（m³） | 53.5 | 35.8 | 35.8 | 36.5 | 40 |
| Rated pressure（MPa） | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Horizontal conveying distance（m） | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 |
| Vertical conveying height（m） | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 |
| Discharge speed（t/min） | ≥1.2 | ≥1.2 | ≥1.2 | ≥1.2 | ≥1.2 |
| Residual rate（%） | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |

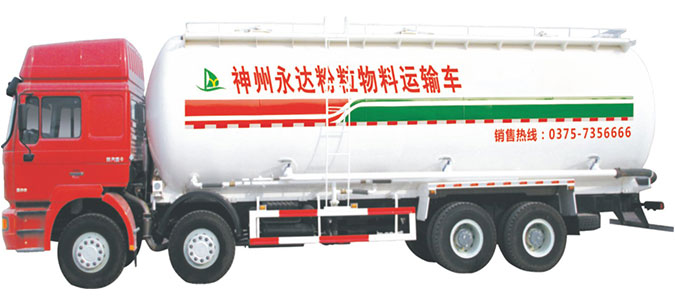

Cement Bulk Carrier Truck For Sale
The effective loaded volume of the tank ranges from 20 to 40 cubic meters, meeting various customer and market demands. A specialized fluidized bed is installed inside the tank based on the characteristics of the loaded materials to ensure optimal discharge performance.
The discharge pipe has been specially treated in certain areas to enhance its wear resistance. Additionally, the system is equipped with anti-blockage piping to prevent clogs during the unloading process.
Advantages Of Cement Bulk Carrier Truck
Advanced Design: The innovative fluidized bed structure allows for faster unloading speeds and shorter discharge times, enhancing overall vehicle performance and stability.
Air Intake System: The modular piping design ensures high reliability and convenient maintenance. The system achieves high air intake efficiency with minimal energy loss. The secondary air assist structure accelerates the unloading process and prevents pipe blockages.
Discharge System: The discharge pipeline features a large-diameter design with custom-thick, wear-resistant seamless pipes that facilitate quick material discharge. The upgraded structural design incorporates smaller angles to reduce discharge resistance and minimize wear on the pipes, extending their service life.
Usages Of Cement Bulk Carrier Truck
Cement bulk carrier trucks play a crucial role in the construction and building materials industries by efficiently transporting bulk cement and other powdered materials. These trucks are designed for optimal loading and unloading efficiency, ensuring that construction sites receive timely and reliable material deliveries.
Specification Of Cement Bulk Carrier Truck
| Model | 6*4 Model | 8*4 Model |
| Dimension（mm） | 9970*2550*1400 | 10270*2550*3950 |
| Wheel base（mm） | 1950+2850+1400 | 1800+3375+1400 |
| Curb weight（kg） | 14130 | 15200 |
| Tank volume（m³） | 27 | 27 |
| Rated pressure（MPa） | 0.2 | 0.2 |
| Horizontal conveying distance（m） | ≥5 | ≥5 |
| Vertical conveying height（m） | ≥15 | ≥15 |
| Discharge speed（t/min） | ≥1.2 | ≥1.2 |
| Residual rate（%） | ≤0.3 | ≤0.3 |
Robust Tank Structure
The tank features excellent compression resistance and a wide angle, allowing for rapid unloading and enhancing operational efficiency during material transport.
Durable Coating and Construction
The entire trailer is coated with electrostatic powder for lasting protection and vibrant colors. Made from high-strength steel with automated welding, it ensures reliability and stability.
Versatile Material Transport
Designed for multifunctionality, the trailer efficiently transports various materials like fly ash and mortar without loss, maximizing profitability and meeting diverse customer needs effectively.
Efficient Fluid Bed Design
The compact vertical fluid bed structure has an almost zero angle with the horizontal plane, enhancing material flow efficiency and making unloading quicker and more effective.
Manufacturing Details Of Our Cement Bulk Carrier Trailer
Large tailor welding machine
Laser cutting machine
CNC reel
Electrostatic powder coating
Electrostatic powder coating
Special-shaped flip frame
Gantry welding machine
Automatic welding of aluminum alloy
Aluminum alloy tailor-made welding machine
CASE STUDIES
cHECKOUT RESULTS ACHIEVED IN OUR COMPLETED CASES
Vietnam
TRaNSIT MIXER DELIVERED TO Vietnam
Thailand
TraNSIT MIXER Truck Sent TO Thailand
Indonesia
TraNSIT MIXER Sent TO Indonesia
Malaysia
concrete mixer truck in Malaysia
China, HongKong
TRANSIT MIXER Sent TO China HongKong
Mexico
TRANSIT MIXER DELIVERED TO MEXICO
Martinique
TRANSIT MIXERS Shipped to Martinique
Jamaica
TRANSIT MIXER Machine in Jamaica
Senegal
TRANSIT MIXER DELIVERED TO Senegal
ADVANCED EQUIPMENT MANUFACTURING
The Complete Work Flow In Our Factory
From initial material selection to final assembly and rigorous testing, each step is designed to optimize efficiency and maintain stringent quality standards.
STEP
01
Cutting And Forming
The drum and components are formed with large CNC plasma cutting machines, and CNC punching machines, which come with high accuracy, small errors and less thermal deformation, ensuring design accuracy and greatly improving production efficiency. The blades, feed hopper, discharge chute, extension chute, guide chute, etc. are pressed and formed using a CNC press to ensure accuracy and consistency. The streamlined design is aesthetically pleasing and greatly reduces concrete adhesion!
STEP
02
Welding
All cones of the mixer drum are welded by a splicing machine before rolling, with one side welded and two sides formed. Each cone is rolled and formed using a CNC hydraulic bending machine. The drum adopts a lap joint structure design and the guiding effect of the lap joint effectively ensures the co-axiality and circularity of the drum. The design of the lap-welded structures has higher strength, stiffness, and stronger shear resistance compared to butt-welded structures. The key parts are all welded using the submerged arc automatic welding method, ensuring the welding quality.
STEP
03
Painting
The drum and all steel structural components are shot blasted through a type shot blasting machine (16 sets of heads, 360 degrees), fully improving the adhesion of the paint on the surface of the workpiece. Spray painting adopts a continuous assembly line (60 meters long) for operation, dust-free throughout the entire process and adopts a baking process for treatment. The paint quality and rust prevention performance are industry-leading level. We are the only enterprise in the industry that adopts shot blasting and paint penetration assembly line operations.
STEP
04
Final Assembly
A reasonable layout on an assembly line with the process and strict quality control system provides guarantees for high-quality production operations and production capacity. The hydraulic system is assembled in a specially designed sealing environment; which has strict procedures to ensure its cleanliness. That ensures stable quality and reliability when used! The oil filling is strictly measured using a CNC refuelling machine to avoid problems caused by excessive or insufficient refuelling.
STEP
05
Detection
After each mixer truck is installed and taken offline, it must undergo about 2 hours of debugging to ensure that the drum rotates smoothly and reaches the set speed, and to ensure that all hydraulic components are free of oil leakage. During debugging, we make sure the radiator fan can automatically turn on when the oil temperature reaches the set level. After mixer truck debugging is completed, there are strong inspections such as side slip, lighting, braking system and reflective markings that are tested item by item on the inspection line to ensure the trucks meet reliability and safety quality.
